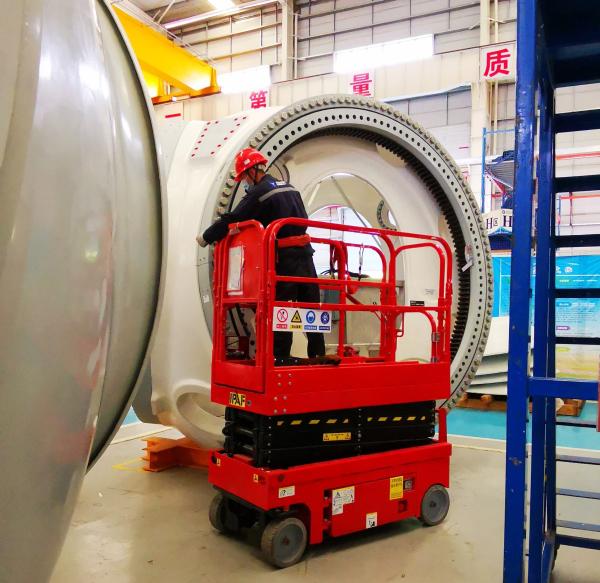

6M Electric Scissor Lift

Brand Name : SIVGE

Model Number : ZS78-230

Certification : CE / ISO / SGS / KCS

Place of Origin : China

MOQ : 1 Unit

Price : USD 8000-12000 Unit

Payment Terms : L/C, T/T

Supply Ability : 12000 units year

Delivery Time : 30 days

Packaging Details : Standard

Type : Scissor Lift Platform

Working height : 7.8 m

Platform height : 5.8 m

Load capacity : 230kg

Platform size : 1.68*0.77 m

Turing radius : 0m / 1.64 m

Overall width : 0.81m

Height with rails folded : 1.84m

Battery : 225AH/24V

Contact Now



Mini scissor lift 6 m mobile electric scissor lift compact scissor lift platform for sale



The scissors aerial work platform which is the newly developed series by SIVGE can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.


Advantages and highlights:
1, Low noise and zero release
The electric drive system of zero emission,low noise, high efficiency, and high energy-conservation is applied and the traceless tires are equipped to realize environmental-friendly and convenient constructions in enclosed environments, including office buildings, hospitals, and schools.

2, Meeting individual demands
Perfect safety protection,independently-designed control system and abundant matching combinations may fully meet the customized demands of customer.

3, Compact and flexible operation
The narrow design enables the vehicle to pass through single gateway with ease and the unique “zero inner turning radius” works with folding platform to realize easier transportation and translocation and flexible application in narrow spaces. The 25% gradeability makes the driving of vehicle easier.







Standered configuration

● Proportion control
● Charging protection
● Automatic brake
● Tilt sensor alarm
● Fault diagnosis
● Energency stop
● Emergency lowering
● Pothole protection
● Foldable guardrails
● Extendable platform
● Bio-reducible hydraulic
● Flashing beacon
● Hour meter
● Self-lock gate
● Horn
● Action buzzer
● Safety Bracket
● Trackless tire
Main Features:


* The latest DTC control system with fault diagnosis system and voice guide.
* Hydraulic driving with balance valve, travel brake is more stable.
* With optional configuration of DC power drive, battery life is longer.
* Equipped with quick Charger, it is more time-saving and efficient.
* Double loading system, using efficiency of equipment is much improved.
* Centered scissor arm design, the comfort and stability of platform is improved.
* Higher working height with same numbers of scissor arms.
* Adopting electrophoresis coated, anti-corrosion performance triply improved







Download Brochure: Z series scissor lifts-Sivge-2019.pdf








Brand

SIVGE

Model

ZS78-230

Platform height

 5.8 m

Working height

7.8 m

Load capacity

230kg

Table size

1680* 770 mm

Machine weight

1330 kg

Overall width

810 mm

Stowed size

2480*820*1870 mm

Driving mode

Self propelled

Lifting power

DC Battery














Product Description




APPLICATIONS:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.
